SCARA ROBOT
For printing purpose, please change the page setting to "Landscape" orientation in your printer | Save The Trees - Go Paperless
ADTECH designs and builds a wide range of SCARA ROBOT with advance features and high capability and reliability to cater for variety of production processes and applications, including screwing, loading, deburring, soldering, packaging, assembly, pick and place, indexing etc.
Customer is rest assured that Adtech SCARA Robot can meet your production demand.
These SCARA robot can be delivered within 3-4 working weeks* to your factory.
Contact us for more product information :
Email : Corporate@oriental-dm.com
Call I WhatsApp : +60 12-380 9960

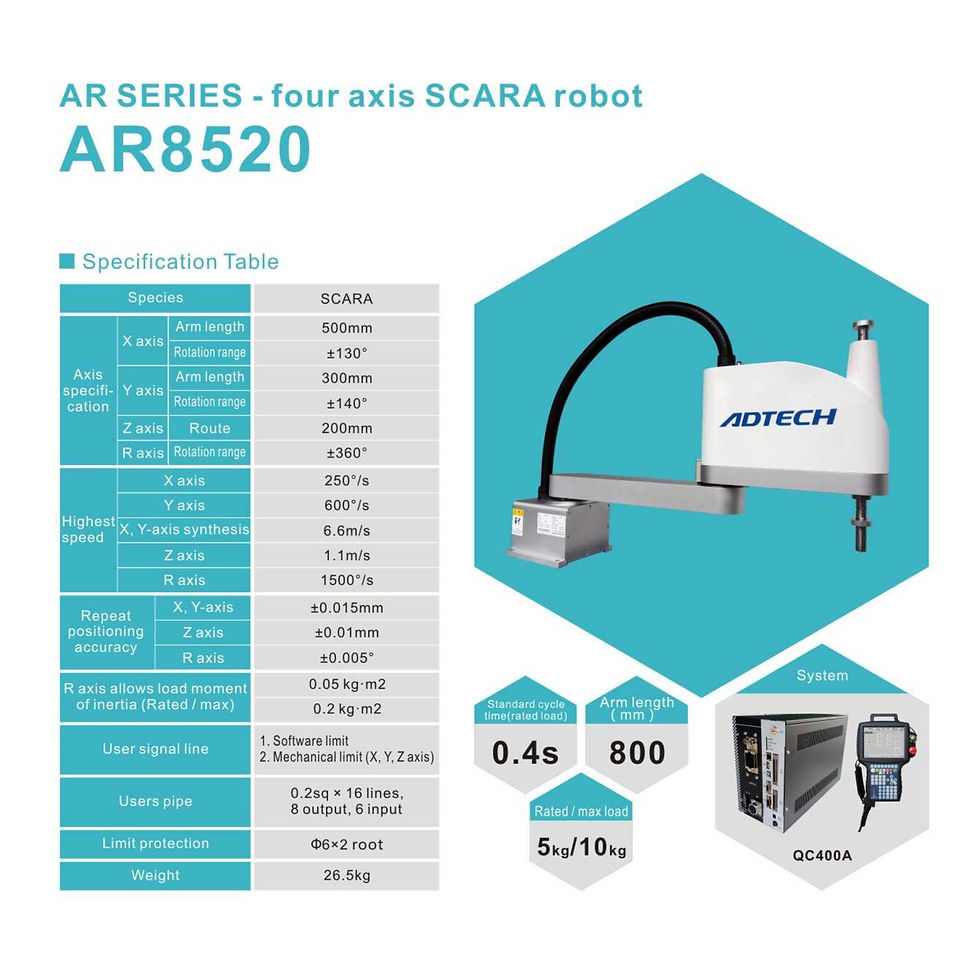

ADTECH SCARA ROBOT - 4 Axis
Axis Specification
Overall Arm Length : 300mm ~ 1,000mm
X-Axis : Arm Length 100mm ~ 600mm (Rotation Range : ±127⁰ ~ ±135⁰)
Y-Axis : Arm Length 200mm ~ 400mm (Rotation Range : ±142⁰ ~ ±150⁰)
Z-Axis : Route 150mm ~ 300mm (Rotation Range : ±360⁰)
Maximum Speed Range
X-Axis : 337.5⁰/s ~ 600⁰/s
Y-Axis : 375⁰/s ~ 600⁰/s
X-Y-Axis Synthesis : 5.2m/s ~ 8.5m/s
Z-Axis : 1.1m/s ~ 1.4m/s
R-Axis : 1,000⁰/s ~ 1,667⁰/s
Standard Cycle Time : 0.37 ~ 1 second
Repetitive Position Accuracy
X-Y Axis : ±0.01mm ~ ±0.03mm
Z-Axis : ±0.01mm ~ ±0.02mm
R Axis : ±0.005⁰ ~ ±0.01⁰
Max Load : 2kg/5kg ~ 10kg/20kg
